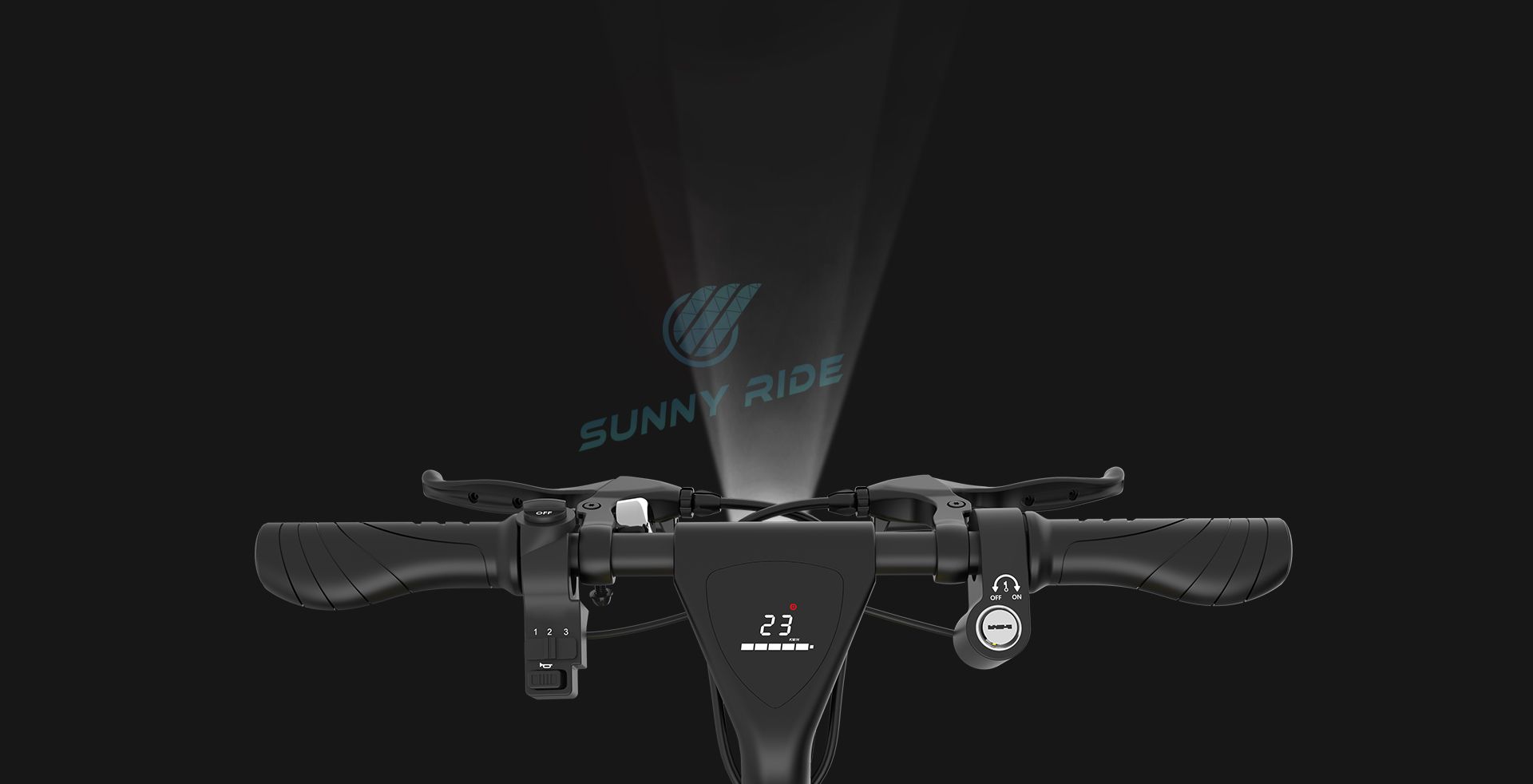

Light Control and Cool Travel
Car paint technology

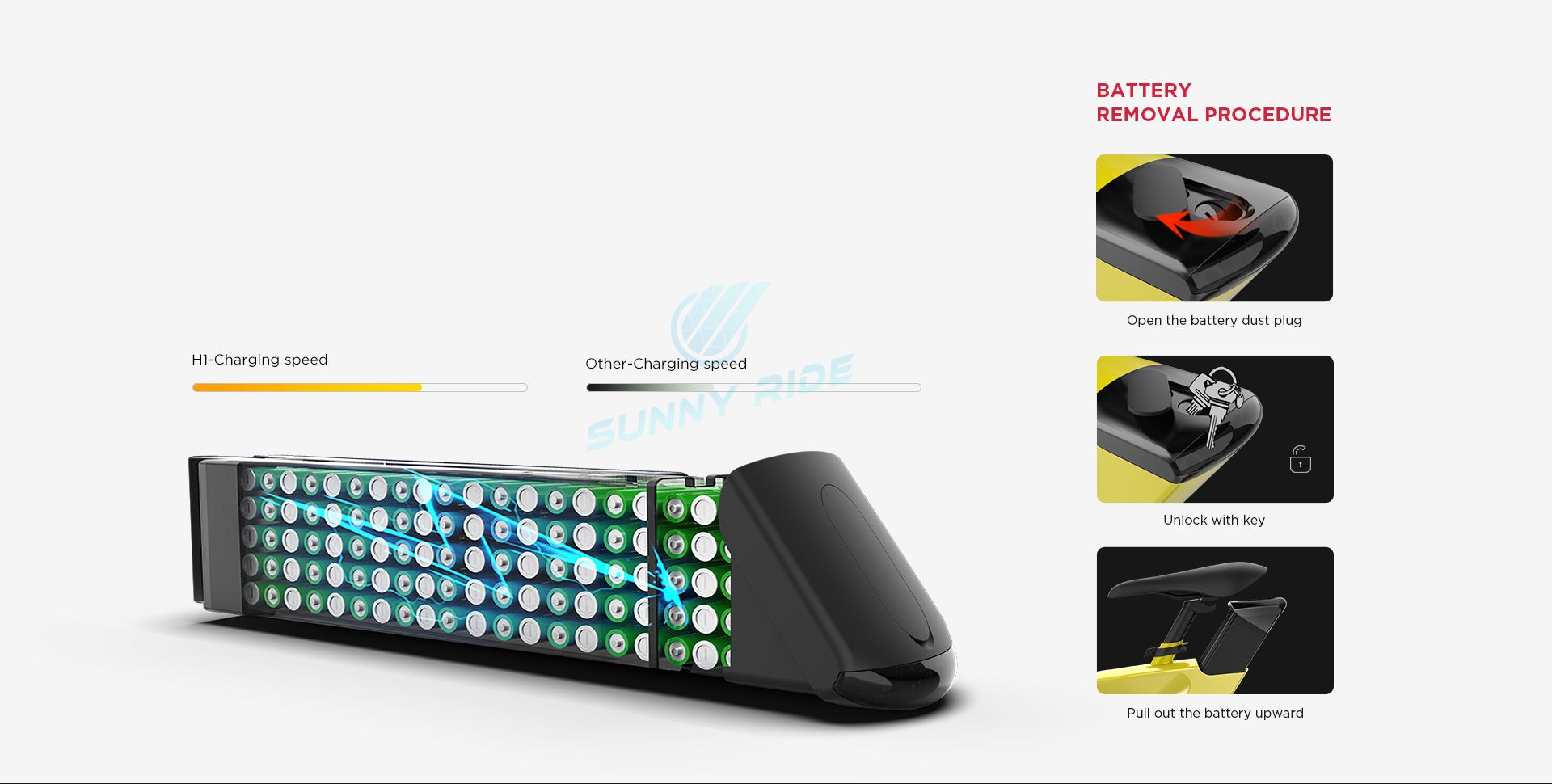

Independent removable Battery
Foldable and Adjustable seat
Motor:250W brushless High-speed motor
Range: 45-55KM
Top speed:25KM/H
Battery Capacity:36V, 10AH Lithium battery
Max load:120KG
Climb angle: 25degree
Size:14 inch inner and Outer Tyre
Brake：Disc brake
14 inch, 3 speed gears，Car paint technology,Independent removable Battery,Foldable and Adjustable seat,3 colors for your choice
| Model | H1 | H1 MAX |
|---|---|---|
| Open size | 1180*470*1090mm | 1180*470*1090mm |
| Folding size | 1180*350*760mm | 1180*350*760mm |
| Pedal shaft ground clearance | 250mm | 250mm |
| Minimum ground clearance | 60mm | 60mm |
| Frame materials | Aluminum alloy | Aluminum alloy |
| Net weight | 21kg | 22kg |
| Rim size | 14inch | 14inch |

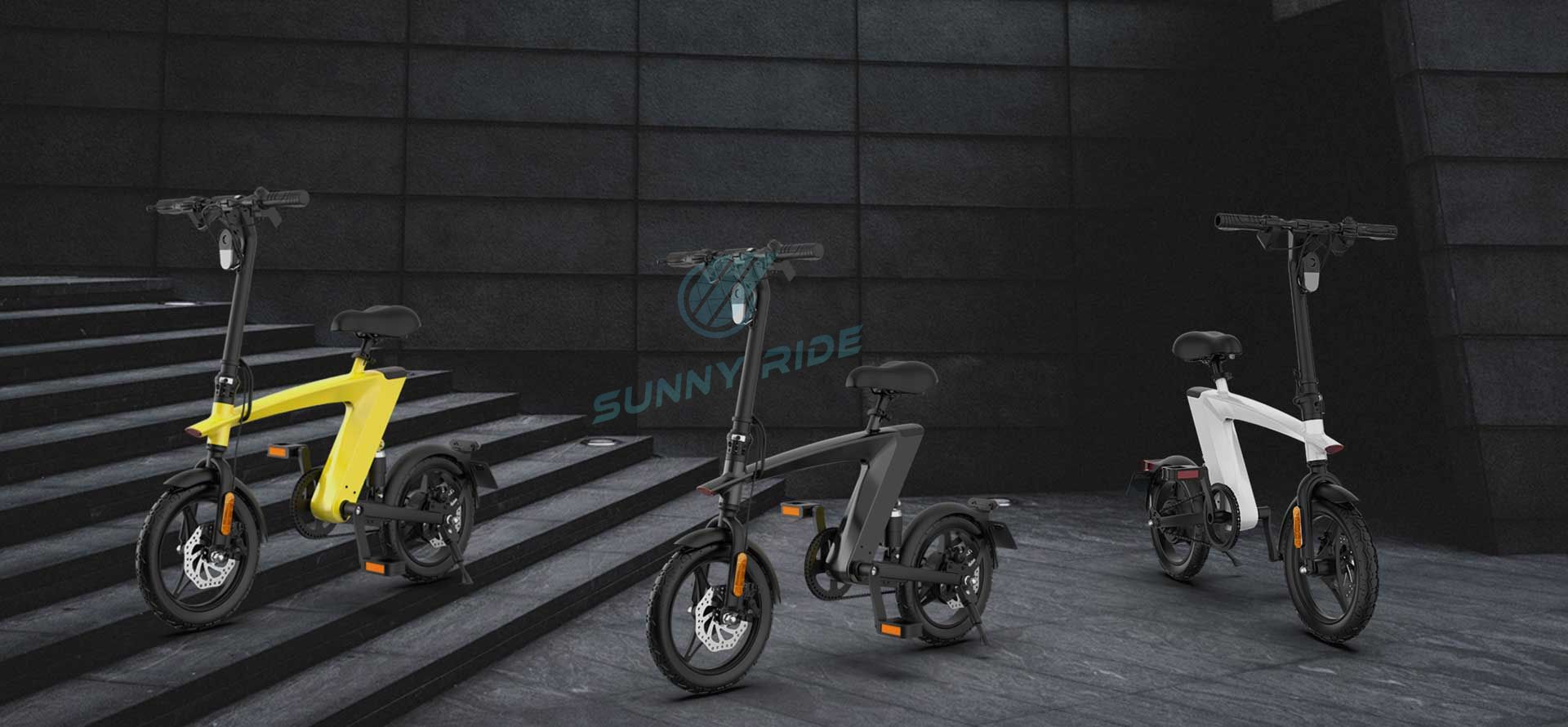

| Frame color | black, white, yellow | black, white, yellow |
| Motor | 36V/250W | 48V/400W |
| Maximum torque | 22N.M | 34N.M |
| Battery capacity | 36V/10AH | 48V/7.5AH |
| Charger parameters | 42V/2A | 54.6V/2A |
| Max speed | 25km/h | 35km/h |
| Pure electric range | 25-35km | 25-35km |
| Power assist range | 70-75km | 70-75km |
| Climb angle | 15° | 20° |
| Max load | 100kg | 100kg |
| Riding mode | Ridding / Hall pedal assist / Electric | Ridding / Hall pedal assist / Electric |
| Charging time | 5-6h | 4-5h |

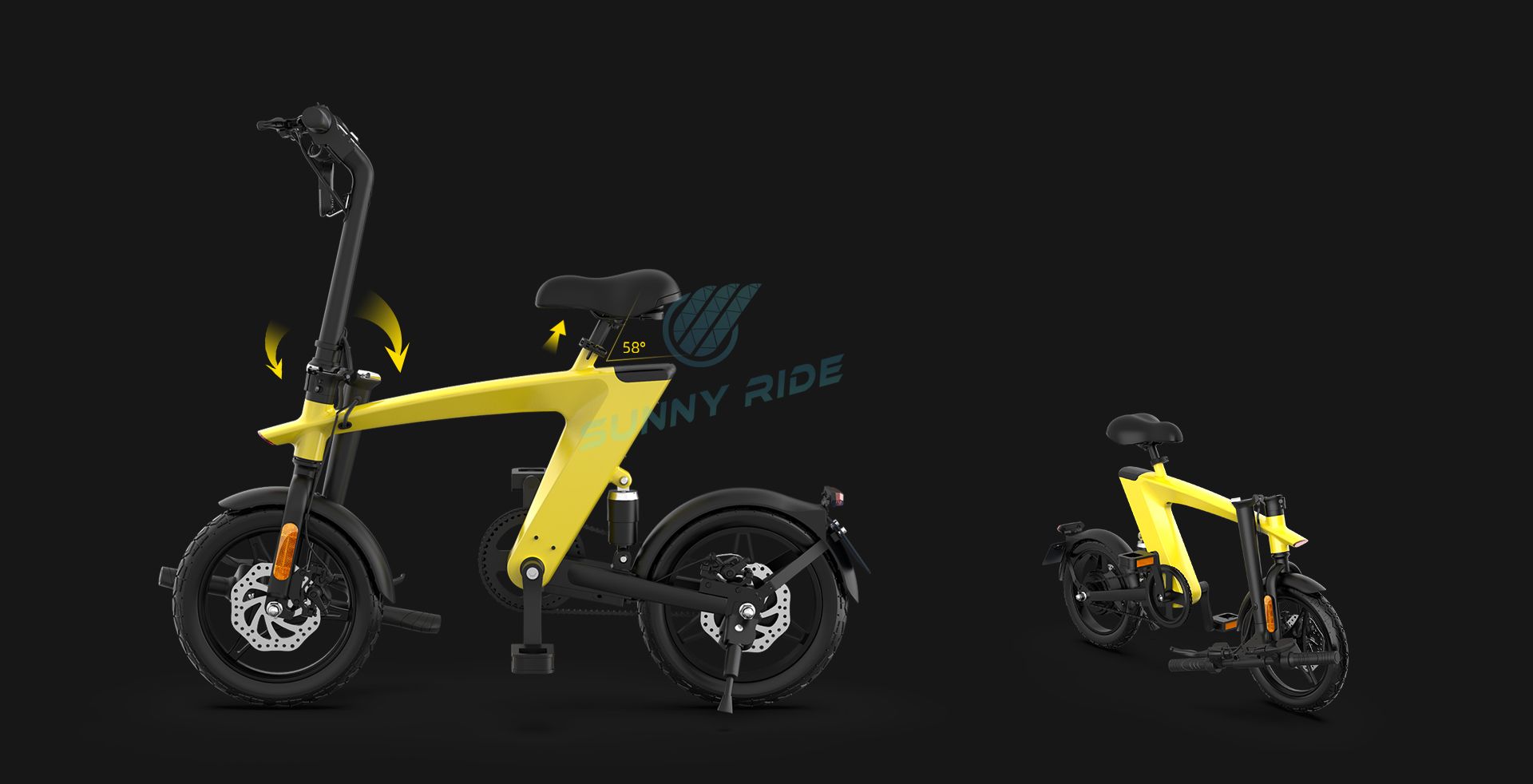

| Folding features | Pole folding / Seat forward flip | Pole folding / Seat forward flip |
| Seat height | Adjustable | Adjustable |
| Seat suspension | Seat spring+Pole spring | Seat spring+Pole spring |
| Battery detachable feature | Direct plugin with mechanical lock | Direct plugin with mechanical lock |
| Suspension | Rear shock absorber with spring | Rear shock absorber with spring |
| Brake mode | Front and rear dual disc brake | Front and rear dual disc brake |
| Assist mode | Hall sensor, 3 speed gears | Hall sensor, 3 speed gears |
| Acceleration mode | Throttle accelerator, Sigle mode | Throttle accelerator, Sigle mode |
| Warning | Electric horn | Electric horn |
| Light | LED light | LED light |
| Rear warning features | Tail light | Tail light |

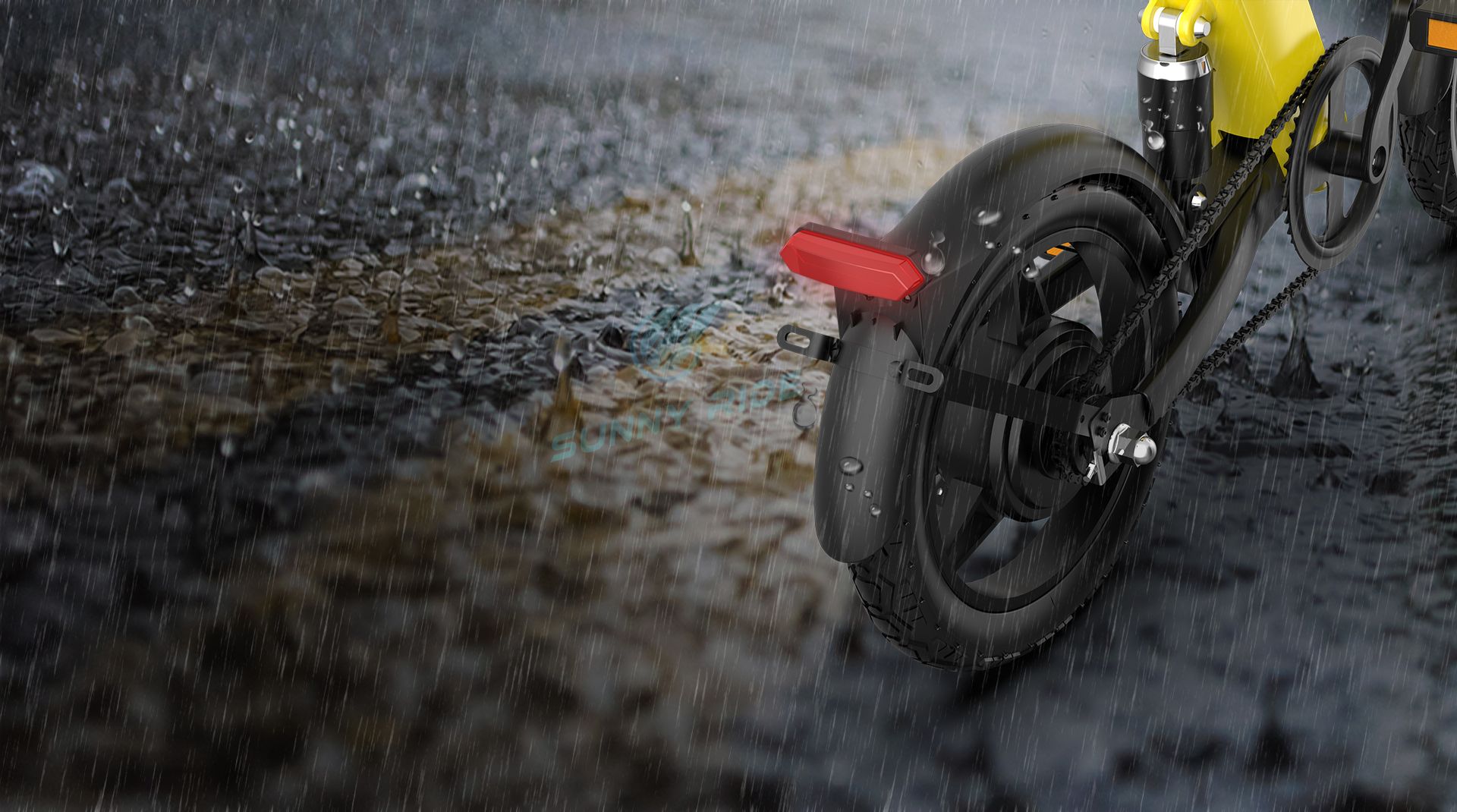

| Protection leval | IPX4 | IPX4 |
| Operation temperature | 0～40℃ | 0～40℃ |
| Storage temperature | -10～40℃ | -10～40℃ |
| Charging environment temperature | 0～35℃ | 0～35℃ |
| Usage site | Flat paved road, open sites without obstacles | Flat paved road, open sites without obstacles |
| Spare parts | Charger adaptor, Manual, Wrench | Charger adaptor, Manual, Wrench |
| Carton size | 1200*230*700mm | 1200*230*700mm |
| Gross weigt | 26kg | 27kg |
